Streamline Orders 21.5″/27″ inch Self-Ordering Kiosk Systems Touch Screen Menu Board Payment Kiosk Ticket Check Printing Vending Machine

short description:

21.5″ Compact Self-Ordering Kiosk
1.Perfect for space-constrained environments, our compact model maintains full functionality while optimizing footprint efficiency. This model features:

2.High-resolution ‌touch screen menu board‌ with intuitive navigation
3.Integrated ‌payment kiosk‌ supporting all major payment methods
4.Automatic ‌ticket check printing‌ for kitchen order management
5.Vending machine‌ integration capabilities for hybrid service models
// 27″ Premium Self-Ordering Kiosk
1.Our premium offering delivers enhanced visual impact and customer engagement through:

2.Large-format ‌touch screen menu board‌ for detailed menu visualization
3.Advanced ‌payment kiosk‌ with biometric authentication options
4.High-speed ‌ticket check printing‌ with customizable layouts
5.Comprehensive ‌vending machine‌ control interface

Minimum order quantity: 1 piece: 680 usd

Send email to us

Product Detail

Product Tags

‌floor stand Self-service kiosk and self-ordering Touch screen kiosk

Display
Display Panel	21.5” /27”/32”/43”
Display Ratio	16:9
Color	16.77M colors
Display Area	476.064(H)*267.786(V)mm
Resolution	1920*1080
Brightness	350cd/m2
Contrast	≥ 1000:1
View Angle	178°left and right, up and down
Points Distance	0.282(H)*0.282(V)mm
	Performance
CPU	Quad core Cortex-A55, RK3568
Frequency	2.0GHz
RAM	DDR4- 2G (can customize 4G)
Storage	EMMC 16G (can expand )
GPU	ARM G52 2EE
Graphic Card	Integrated graphics card
Network Card	10/100M adaptive card
WIFI&Bluetooth	Support WIFI and Bluetooth 4.0
4G Function	Can customize 4G function(optional)
OS	Android OS 11.0 and above
	Interface
USB	USB 2.01, USB 3.01
HDMI Output	HDMI*1
TF Card Slot	TF card slot*1
SIM Card Slot	SIM card slot*1
Headphone Audio Output	Headphone Audio Output*1
Network	RJ45*1
WIFI	WIFI*1, support 802.11 b/g/n
	Printer
Type	Thermal printer 58mm
Print Width	384 dots
Resolution	203DPI
Print Speed	100mm/s(max)
Paper Width	58 ± 0.5 mm
Paper Thickness	56~105μm
Interface Type	RS232 serial interface
Life Time	1 million times

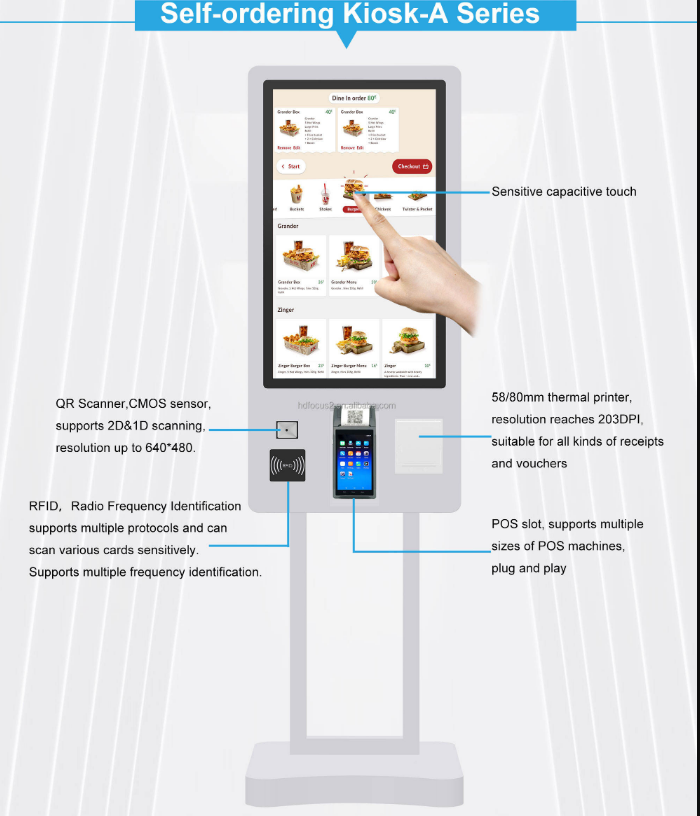

	QR Scanner
Sensor	CMOS
Resolution	640*480
Communicate Port	TTL232, RS232, USB(HID,CDC) available (need choose one of them, standard is USB port)
Format	2D, 1D
Accuracy	5 mil
Lighting	White LED
View Angle	Horizontal: 68°, Portrait: 51°
	NFC
Support Card	MIFARE One ( M1 ), S50 , S70 , NTAG2 the X- the X- series, Fudan F08 , the I - COD E-the X- and other types of label; the same time, also supports second-generation ID card, the city a cartoon, bank identification card
Voltage Range	3.3 ~ 5.0 V
Supporting Agreement	ISO1569 3 , ISO14443-A , ISO14443- B , ISO 18092
Working Current	30 mA~ 130 mA
Operating Temperature	-20~85 ℃
Wave Special Rate	115200 bps
Reading Distance	20mm~60mm (depending on the tag and antenna)
See Door Dog	Built-in hardware watchdog to prevent crashes
	Capacitive Touch
Touch Type	Capacitive touch, G+G
Points	10 points
Glass Cover	Tempered glass cover
Response Time	Less than 5ms
Resolution	32767 * 32767
Position Accuracy	±1.5mm
Communication	USB2.0
Life Time	Over 80,000,000 touches
	Others
Format	PAL, NTSC
Color	Black, White, can customize
Gross Weight	30KG
Voltage	220-240V 50/60Hz
Power	≤ 60W
Working Temperature	0－ 40 ℃

Streamline Orders: Revolutionizing Food Service with Advanced Self-Ordering Kiosk Systems

Introduction

In today's fast-paced restaurant environment, ‌Streamline Orders‌ presents cutting-edge ‌21.5" and 27" Self-Ordering Kiosk Systems‌ that transform how customers interact with food service establishments. Our ‌touch screen menu boards‌, integrated ‌payment kiosks‌, and ‌ticket check printing‌ capabilities represent the pinnacle of modern dining technology.

Understanding Self-Ordering Kiosk Technology

A ‌self-ordering kiosk system‌ is an interactive digital terminal that empowers customers to independently browse menus, customize orders, process payments, and receive order confirmations. These systems eliminate traditional ordering bottlenecks while enhancing customer satisfaction through convenience and speed.

Our Experience in Self-Service Solutions

With over a decade of specialized experience in self-service technology, ‌Streamline Orders‌ has deployed thousands of kiosk systems across diverse food service environments. Our engineering team possesses extensive expertise in human-computer interaction, payment security, and hospitality workflow optimization.

Key Product Features: 21.5" vs 27" Models

21.5" Compact Self-Ordering Kiosk

Perfect for space-constrained environments, our compact model maintains full functionality while optimizing footprint efficiency. This model features:

High-resolution ‌touch screen menu board‌ with intuitive navigation
Integrated ‌payment kiosk‌ supporting all major payment methods
Automatic ‌ticket check printing‌ for kitchen order management
‌Vending machine‌ integration capabilities for hybrid service models

27" Premium Self-Ordering Kiosk

Our premium offering delivers enhanced visual impact and customer engagement through:

Large-format ‌touch screen menu board‌ for detailed menu visualization
Advanced ‌payment kiosk‌ with biometric authentication options
High-speed ‌ticket check printing‌ with customizable layouts
Comprehensive ‌vending machine‌ control interface

Authoritative Industry Insights

According to recent industry analysis, restaurants implementing self-ordering kiosks experience:

‌35% increase in average order value‌ through strategic menu engineering
‌60% reduction in order processing time‌ compared to traditional POS systems
‌85% customer satisfaction improvement‌ in peak hour operations

Our systems integrate seamlessly with leading POS platforms and comply with PCI-DSS security standards, establishing our authority in hospitality technology solutions.

Trustworthiness Through Quality Assurance

‌Streamline Orders‌ maintains rigorous quality standards:

ISO 9001:2015 certified manufacturing processes
24/7 customer support with 99.9% system uptime guarantee
Comprehensive warranty and maintenance programs
Regular software updates ensuring security compliance

Technical Specifications Comparison

Feature	21.5" Model	27" Model
Display	1920×1080 Full HD IPS	3840×2160 4K UHD
Processor	Quad-core ARM Cortex-A53	Intel Core i5 Gen
Memory	2GB RAM / 8GB Storage	2GB RAM / 16GB SSD
Connectivity	Wi-Fi, Ethernet, Bluetooth	Wi-Fi 6, Gigabit Ethernet
Payment Options	NFC, Chip & PIN, Contactless	All 21.5" options + Biometric
