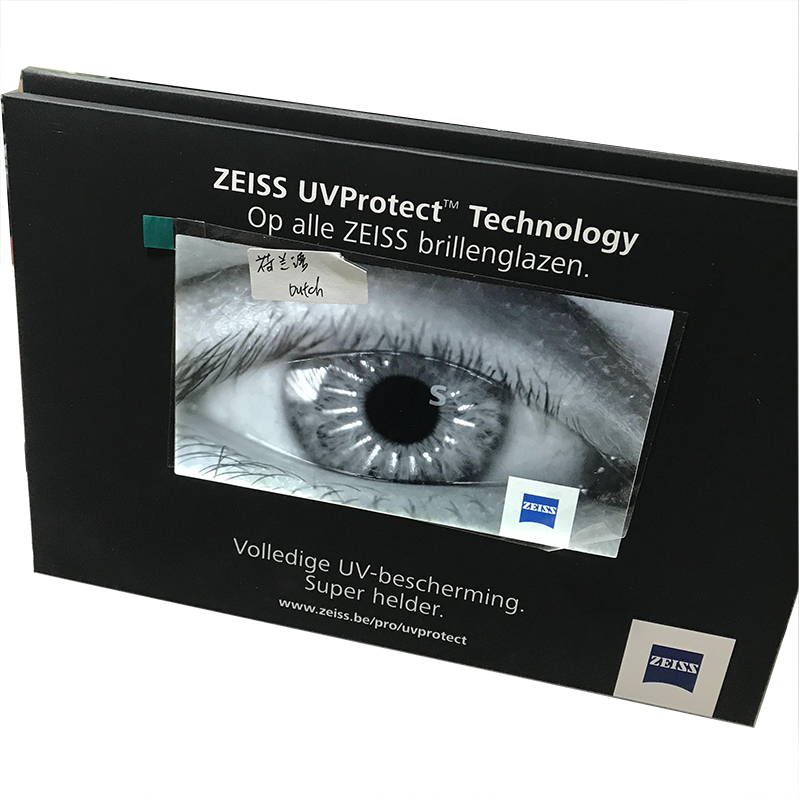

ZEISS Company event stand Shape Advertising Lcd Touch display Video fold Brochure , 7″ LCD Video player Calendary

short description:

Stand-style video brochures (often called video table tents or desktop video displays) are designed to sit upright on flat surfaces, turning traditional marketing printouts into hands-free, interactive digital displays. They are ideal for hotel receptions, retail counters, trade show booths, and showroom desks.

1. Structural & Design Features

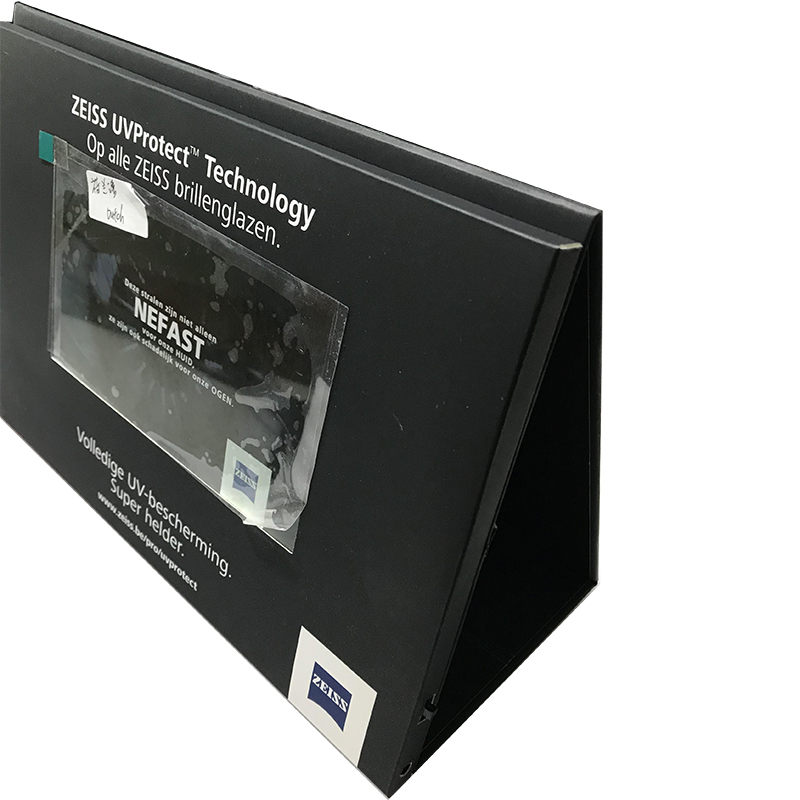

Self-Standing Base: Features an integrated triangular fold (tent style), an easel-back leg, or an acrylic base that keeps the unit perfectly upright and stable.
Optimal Viewing Angle: The screen is angled slightly upward (usually between 60° to 75°) for clear visibility when placed on a standard desk or counter.
Heavy-Duty Cardstock or Acrylic: Often built with thicker hardcover paperboard ($1200text{g}-1500text{g}$ Greyboard) or housed in premium clear acrylic frames to ensure durability in high-traffic public areas.

2. Core Hardware Parameters

Screen Sizes: Typically larger than standard hand-held brochures to catch eyes from a distance. 7-inch ($1024 times 600$) and 10.1-inch ($1280 times 800$) IPS high-definition screens are the industry standards.
Extended Battery Life: Since they sit on counters all day, they often feature larger rechargeable lithium batteries ($1500text{mAh}$ to $3000text{mAh}$) allowing for 4 to 6 hours of continuous playback.
Continuous Power Option: Many models include a hidden or side-facing Type-C/Micro-USB port specifically designed to stay plugged into a wall outlet for 24/7 uninterrupted presentation.

3. Interactive & Playback Modes

Motion/Proximity Sensor Activation: Instead of opening a cover to play, these use a built-in sensor. When a customer walks up or stands in front of the counter, the video automatically triggers.
Auto-Looping Playback: Plays videos on an infinite loop the moment it powers on or detects motion, making it a zero-maintenance display unit.
Front-Facing Control Buttons: Clean, flat-induction or physical buttons placed neatly below the screen for Volume Up/Down, Play/Pause, or switching between multiple video tracks (e.g., different product lines).

EXW 50 pieces Price: US $28 - 30 / Piece

EXW 100 pieces Price: US $26 - 28 / Piece

Send email to us

Product Detail

Product Tags

Quick Detail:

Name: video brochure
Applications: Advertising and promotion
Color:Full colors
Battery capacity:600 mAh, 1000 mAh, 1200 mAh and 2000 mAh

Customized Specification:

Memory	128M / 256M / 512M / 1G / 2G / 4G / 8G
Battery	500-6000 mAh (Rechargeable)
Screen	1.8 inch, 2.4 inch, 2.8 inch, 3.5 inch, 4.3 inch, 5 inch, 7 inch and 10 inch.
Buttons	0-10 buttons (On/Off, Play/Pause and Video Selection etc.)
Paper size	A4, A5 and customization.

1. Product Description for video brochure

Specifications:

Item	Description					Remarks
Switch	Magnetic switch or ON/OFF button switch
LCD Screen	Screen Size	Pixel Size			Aspect Ratio
	1.8 "	320 x 240			4:3
	2.4 "	320 x 240			4:3
	2.8 "	320 x 240			4:3
	3.5 "	320 x 240			4:3
	4.3 "	480 x 272			16:9
	5 "	480 x 272			16:9
	7 "	800 x 480			16:9
Function Control Buttons (Available If Required)	ON/OFF button			1		When adding buttons to the artwork, the centre of each button need to be at least 15mm fromthe edge of the screen, the edge of the card,or another button
	Volume Up			1
	Volume Down			1
	Video Files			0-8
	Play/Pause			1
Print Size	A4, A5, DL (12.7 x 17.7 cm)					Customized print sizes are accepted.
Print Solution	Please ensure all images are supplied in CMYK not RGB.
Number of Video Files	1-8
Memory	128 MB to 4 GB
Battery	Rechargeable battery
Lifespan	1.5h-3h
Mini USB Port and cable	1 USB port for uploading files and charging
Screen Placement	The screen outline can be moved within the boundary of the card, but must be at least 15mm clear of the edge of the card, the buttons and the USB port.
Speakers	Set Up		8OHM 2W
	Output		2W
	Maximum Volume		55dB
	Optimum Volume		40 dB
	Volume Presets		55 dB (if no volume buttons are selected)
Video Format	.avi, mp4, etc.
Boot Logo	Support a boot logo of the same pixels with the screen size.
Special Finishes	When supplying guides for special finishes, please create the area of the finish as a separate spot color within the artwork and rename in color palette to the chosen finish e.g. (Spot UV, foil, etc.) This must be made clear on the art Video Greeting Card for Invitation Card/Invitation Card Sample/Invitation Card Models work to prevent mis-production

How to use video greeting card:
If you have a special person you want to impress (a loved one, a judge, the IT buyer for M organ Stanley) you film

your video message, download it onto the card and send it to them. Open the video brochure, the video automatically

start. (For magnetic button video brochure). Open the card, press the function control button. And close to off.

Bespoke process for video brochure

3. Confirm the specifications and 30% deposit
4.We make it into The End products
5.After get the 70% Balance, we ship the goods.
Customized specifications(video brochure):

Memory	128M / 256M / 512M / 1G / 2G / 4G / 8G
Battery	500-6000 mah (Rechargeable)
Screen	1.8inch,2.4inch,2.8inch,3.5inch,4.3inch,5inch,7inch,10inch
Buttons	0-8 buttons (ON/OFF, Play/Pause, Video Selection etc.)
Paper size	A4 / A5 or customized (such as 5"X7")

Why choose us?
→ Factory Direct Prices.
→ Patent products,private designs.
→ Trusty Quality.
→ Professional Technology & Services.
→ Fast Lead time.
→ Quick Logo visual proof.
→ Quick Quotation.
→ Customers recognition.
Our advantages:
1. Reply your inquiry in 24 working hours.
2. Professional staffs reply all your questions in exact English.
3. Factory direct prices, high quality products and professional services.
4. Customized design is available.
5. Exercise and unique solution can be provided to customers by our well-trainned and professional staffs.
6. After-sell services and technology -support is available.
7. Warranty time : 1 year.
With skilled workers and continuous produce technology improments, we can provide our clients high quality products which are satisfied by our clients.
We take care no only electronic materials, but also printing colors, die cutting, assembling and so on to make sure that we provide the best products to our clients.
